For the of city Ahmedabad

The project .

Analysis & Observations

The project .

The Weird Factor

The project .

The capitalist market has full control over the present and future nature, character and emergence of our city’s public spaces. Infrastructure leftovers are the residual vacant lands  as a resultant outcome of the infrastructural venture of capitalism. Government procedures and external market forces define the timeline and parameters of a project, where priorities are set on the rapid completion of the project in order to save more funds.   The sheer size and scale of infrastructural projects  is so large that they take up lots of space and this coupled with hasty planning of such large systems lead to formation of weird land residues. . So, if the land is suitable for commercial or residential uses, it gets marked for that. While  the land parcels which aren't, are simply left vacant or rarely used for limited formal programmatic uses.  So this begs the question, why do the “unsuitable” vacant lands get no acknowledgment in the larger planning framework for the city lands ?

photoshop near bridge.jpg
Design

The project .

Suitability
ZiNe 022.jpg
The  general perception of suitable spaces is limited to the following uses -  be infrastructures, high rise apartments, square/ rectangular  shaped parks, commercial complexes etc. This rigid understanding defines  an accepted notion of spaces based on factors like what  can be effectively replicated  due to their standard dimensions and shapes our  ideas of how convenient it is to construct them and procure funding for the same based on calculated agendas of revenue generation. .
ZiNe 023.jpg
So,  in weird residual spaces like these, it becomes increasingly difficult to identify their potential as a public space or even  possibly a productive space when measured against the above conventional standards. This project looks to understand and establish the metric of weirdness for such sites to re-imagine them as equally valuable assets to the city irrespective of their unconventional forms, their ambiguous levels or their configuration of space. They are linear, triangular and several other shapes, their forms are deemed unsuitable for development. and they are ignored and left neglected. Is this the structure or the preset algorithm we want to accept , which can decide the fate of our urban spaces? These voids in the urban realm can be addressed and turned into something useful for the city. They may not be commercial or residential land uses but they can add value only if they are given recognition.

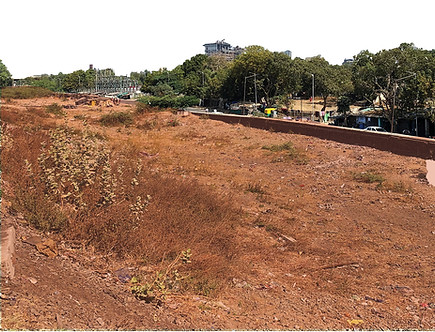

ZiNe 024.jpg

To Acknowledge the leftover

The leftover spaces need the acknowledgement.   Their very existence is ignored and unidentified because they are not considered suitable . The project aims to dismiss this perception in order to really acknowledge and celebrate the infrastructural leftovers for what they can be.
WhatsApp Image 2021-01-10 at 4.52.36 PM.

EXPLOIT THE WEIRDNESS

The way to really acknowledge leftover spaces is to acknowledge their character. One of the reasons why these are leftover is because of their weirdness. This very element needs to be celebrated and exaggerated for it to become an asset for the urban realm.

Measures of weird

FOR THE CITY OF AHMEDABAD

Ahmedabad
C39134F9-C5EE-4DAE-BBCB-4B3C8ABF571E (1)
Sabarmati Railway Junction
ZiNe 026.jpg

 The Sabarmati Railway Bridge is located on the northern part of Ahmedabad, it is a critical railway junction which facilitates the diversions into the Torrent Power house,  Sabarmati north station (passenger) and Sabarmati Station (goods).  The leftover spaces sit huddled between several overlapping infrastructures (flyover/ railway line / metro) .

Infrastructural leftovers

img 10.jpg
img 8.jpg
img 9.jpg
img 5.jpg
img 4.jpg
img 6.jpg
img 3.jpg
img 1.jpg

SITE VISUALS

Observations & Analysis

Analysis n obs
observation_analysis 1.jpg
obsrvation analysis 2.jpg
observation_analysis 3.jpg

Continuous disposal of garbage : The railway junction has a signal where the trains stop , and passengers throw garbage outside the train. This has been a pattern for decades.

Enclosure : the retaining walls encasing the leftover land, prevent access and visual sight.

Not a space to traverse: even though there are multiple access points around the vacant land, nobody uses it to go from point A to point B.

THE WEIRD FACTOR

weird factor
weird fact.png

 The overarching weird factor of the site, was the landforms and their level changes make the space interesting. This is the one quality that can be exploited for further explorations.

Design
photoshop trial 01.jpg
PHOTOSHOP V2.jpg
photoshop v3.jpg
photoshop near bridge.jpg
PHOTOSHOP v1-Recovered.jpg

PARK INFRASTRUCTURE

 The design proposal has been articulated through the site photographs. The Design strategies are elaborated below.

STRATEGIES :


Manipulation of levels

strategy 2.jpg

Meandering pathways

strategy 4.jpg

Vegetation

strategy 5.jpg

Connections for external accesses

strategy 3.jpg

Enclosure re-iteration

photoshop trial 01.jpg
baseplanfor render.jpg

Amphitheatre

Raised pathways

Railway diversion

Seating blocks

Landform levels

Step garden

PHOTOSHOP v1-Recovered.jpg
1

1.

first part.jpg
section first part.jpg
2

2.

middle part 2.jpg

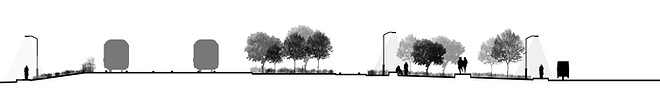

section middle 2.jpg
photoshop near bridge.jpg
3

3.

part near bridge.jpg
section near bridge.jpg
  • Facebook
  • Twitter

Further Details

iso 3.jpg
iso 1.jpg
iso 2.jpg

Amphitheatre storm water drain

Swales

Seating blocks
